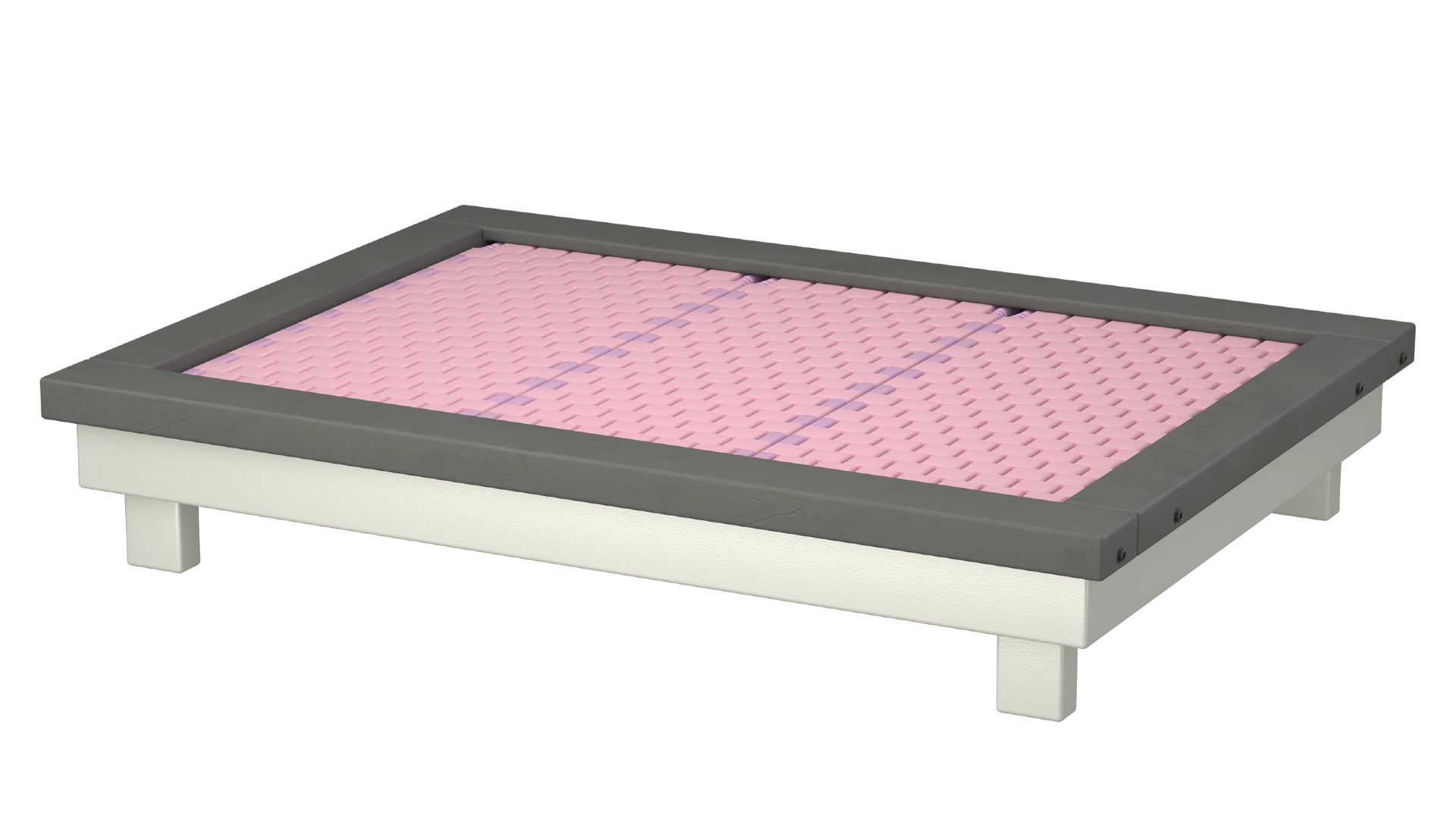

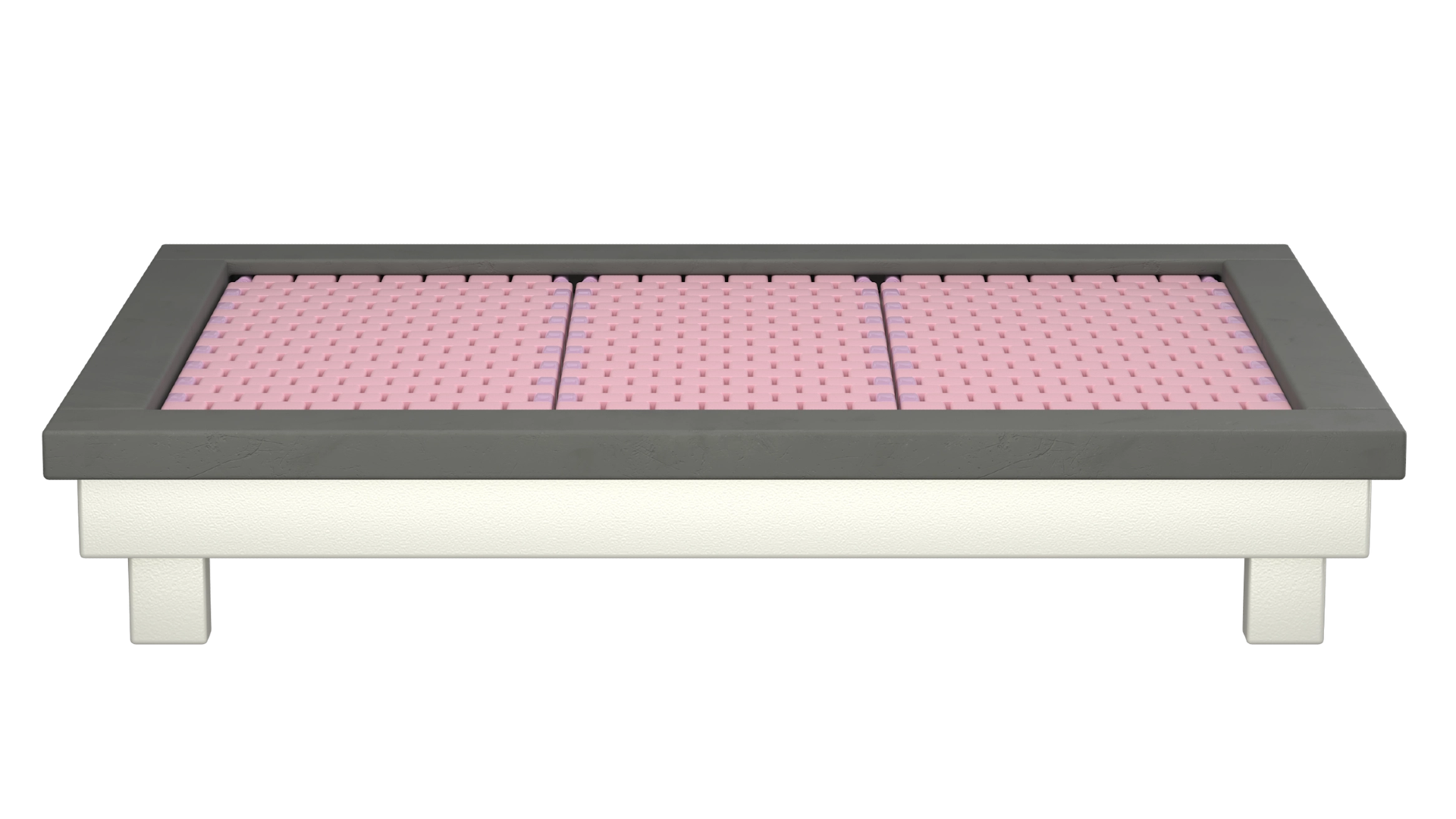

Voltage-adjustable Electric Hotplate

TD Series (700℃)

  • Fast temperature rising
  • High temperature resistance
  • Anti-corrosion structure
  • Good heat insulation
  • Flexible operation
  • Optimization and upgrade
  • Reasonable design
  • Safety

Key Features

Technical Documentation

 TD Series

TD227

TD347

TD467

 Power (KW)

2.5

6.3

13

 Operating Voltage (V)

220

220

380

 Operating Current (A)

11.5

29

20

 Peak Temperature (°C)

700

700

700

 Working Zone Dimensions (mm)

200×200

300×400

400×600 (200×400×3)

 Dimensions (L×W×H) mm

295×370×115

480×450×115

690×560×130

 Control Box Dimensions (L×W×H) mm

285×185×150

285×185×150

345×360×150

 Net Weight (KG)

11

22

36
